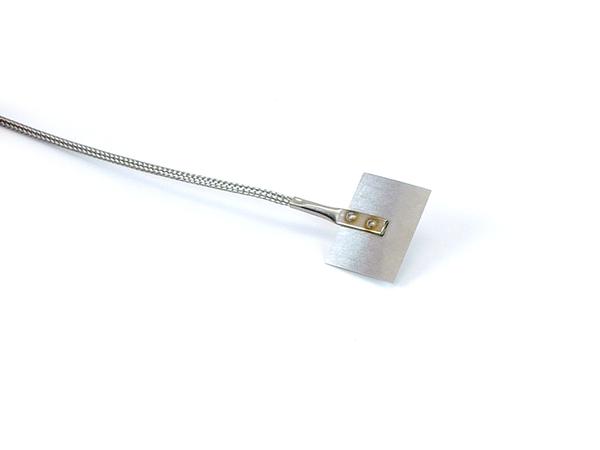

Shim Style Thermocouple
Shim Style Thermocouple
Shim Style Thermocouple
Shim Style Thermocouple

Shim Style Thermocouples

Backer Marathon offers Shim Style Surface Thermocouples. We stock hundreds of different models and offer quick turnaround, usually 48 hours or less, on custom designed and manufactured units. We only use the highest grade materials and offer a variety of sheath materials for any environment or temperature range. All sensors are subject to rigid quality control procedures and a thorough inspection process. Expert engineering assistance is readily available for any order size, large or small. In addition to your sensor needs, we can engineer a complete thermal system for you. Worldwide on-site support is available through one of our many distributors or representatives.

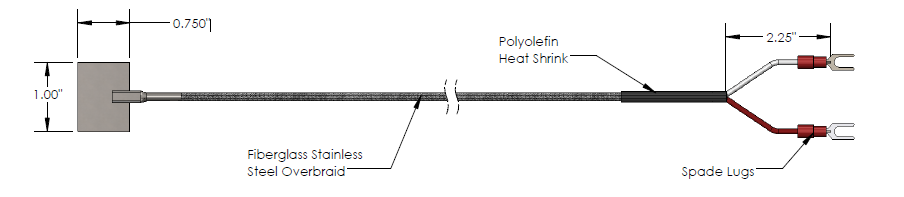

Shim Style Thermocouple Standard Specifications

  • Stainless steel shim
  • 24 ga. fiberglass leads with stainless steel braid
  • Spade lugs
  • Grounded construction

Options

  • 2 wire RTD
  • Polarized plug or jack
  • Additional lead lengths available
  • Custom orders welcome

Termination Options

  • Stripped Leads
  • Spade Lugs
  • Mini Plug
  • Mini Jack
  • Standard Plug
  • Standard Jack

Type Options

  • Type J
  • Type K
  • Type T
  • RTD
  • Grounded
  • Ungrounded

Stock Parts


Part No. Lead Length Available Qty Price
JSH48-G1-24R1 48.0 inches 106 Sign In for Pricing
JSH72-G1-24R1 72.0 inches 208 Sign In for Pricing
KSH48-G1-24R1 48.0 inches 15 Sign In for Pricing
KSH72-G1-24R1 72.0 inches 20 Sign In for Pricing
