Nozzle Bolt Thermocouple

Shallow Nozzle Thermocouple

Backer Marathon offers Shallow Nozzle Thermocouples. We stock hundreds of different models and offer quick turnaround, usually 48 hours or less, on custom designed and manufactured units. We only use the highest grade materials and offer a variety of sheath materials for any environment or temperature range. All sensors are subject to rigid quality control procedures and a thorough inspection process. Expert engineering assistance is readily available for any order size, large or small. In addition to your sensor needs, we can engineer a complete thermal system for you. Worldwide on-site support is available through one of our many distributors or representatives.

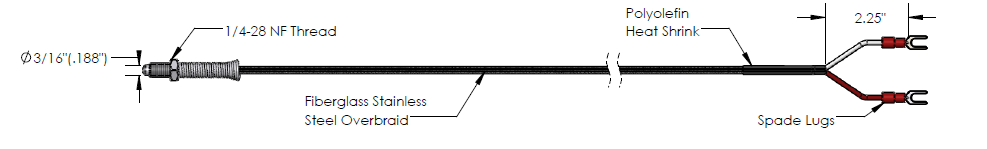

Shallow Nozzle Thermocouple Standard Specifications

  • 1/4-28 N F thread
  • 24 ga. fiberglass leads with stainless steel braid
  • Spade lugs
  • Grounded construction

Options

  • M6 x 1 thread
  • M8 x 1.25 thread
  • 2 wire RTD
  • Polarized plug or jack
  • 20 ga. lead wire
  • Additional lead lengths available
  • Custom orders welcome

Termination Options

  • Stripped Leads
  • Spade Lugs
  • Mini Plug
  • Mini Jack
  • Standard Plug
  • Standard Jack

Type Options

  • Type J
  • Type K
  • Type T
  • RTD
  • Grounded
  • Ungrounded

Stock Parts


Part No. Lead Length Available Qty Price
JNZ48-G1-24R1 48.0 inches 47 Sign In for Pricing
JNZ72-G1-24R1 72.0 inches 135 Sign In for Pricing
KNZ48-G1-24R1 48.0 inches 8 Sign In for Pricing
KNZ72-G1-24R1 72.0 inches 23 Sign In for Pricing
