Melt Bolt Therocouple with Flush Tip

Fixed Melt Bolt Thermocouples

Backer Marathon offers Fixed Melt Bolt Thermocouples. Mineral Insulated Thermocouples are manufactured at Backer Marathon to address your higher temperature requirements. Since the calibration wire is encased within a metal sheath packed with magnesium oxide the thermocouples can withstand higher temperatures and depending on the application will last longer since they are more durable. One excellent feature of Mineral Insulated Thermocouples is faster response time. We stock hundreds of different models and offer quick turnaround, usually 48 hours or less, on custom designed and manufactured units.

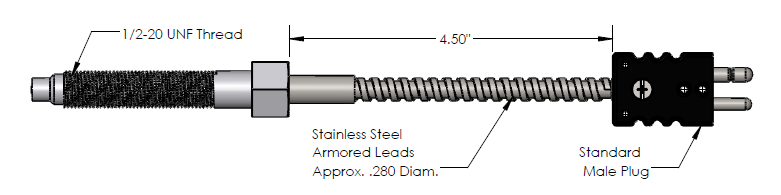

Fixed Melt Bolt Thermocouple Standard Specifications

  • 1/8" diameter MGO tip
  • Grounded junction
  • High pressure and temperature rated
  • 1/2—20 UNF thread
  • Custom lead lengths available
  • Rigid or flexible lead extension
  • 3", 6", or 9" body length
  • Flush tip, or extended tip for faster response (1/8" or 3/16" extension)
  • Polarized plug or jack

Stock Parts

1 - 20 of 30 Filter Results

Part No. Length Available Qty Price
JMBF3-GA-24R2 3.00 inches 13 Sign In for Pricing
JMBF3-GB-24R2 3.00 inches 0 Sign In for Pricing
JMBF3-GC-24R2 3.00 inches 9 Sign In for Pricing
JMBF6-GA-24R2 6.00 inches 9 Sign In for Pricing
JMBF6-GB-24R2 6.00 inches 13 Sign In for Pricing
JMBF6-GC-24R2 6.00 inches 15 Sign In for Pricing
JMBF9-GA-24R2 9.00 inches 0 Sign In for Pricing
JMBF9-GB-24R2 9.00 inches 4 Sign In for Pricing
JMBF9-GC-24R2 9.00 inches 0 Sign In for Pricing
JMBR3-GA-24R2 3.00 inches 8 Sign In for Pricing
JMBR3-GB-24R2 3.00 inches 8 Sign In for Pricing
JMBR3-GC-24R2 3.00 inches 7 Sign In for Pricing
JMBR6-GA-24R2 6.00 inches 0 Sign In for Pricing
JMBR6-GB-24R2 6.00 inches 9 Sign In for Pricing
JMBR6-GC-24R2 6.00 inches 0 Sign In for Pricing
JMBR9-GA-24R2 9.00 inches 0 Sign In for Pricing
JMBR9-GB-24R2 9.00 inches 0 Sign In for Pricing
JMBR9-GC-24R2 9.00 inches 0 Sign In for Pricing
KMBF3-GA-24R2 3.00 inches 0 Sign In for Pricing
KMBF3-GB-24R2 3.00 inches 0 Sign In for Pricing
1 - 20 of 30 Filter Results
