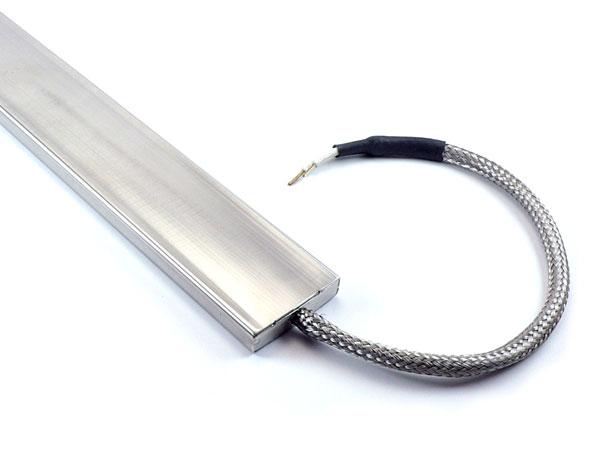

Ceramic Strip SB1 Termination

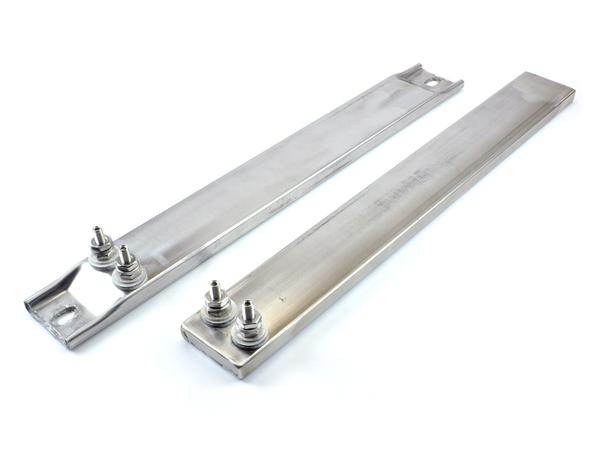

Ceramic Strip Heaters
Ceramic Strip SB4 Termination Without Tabs

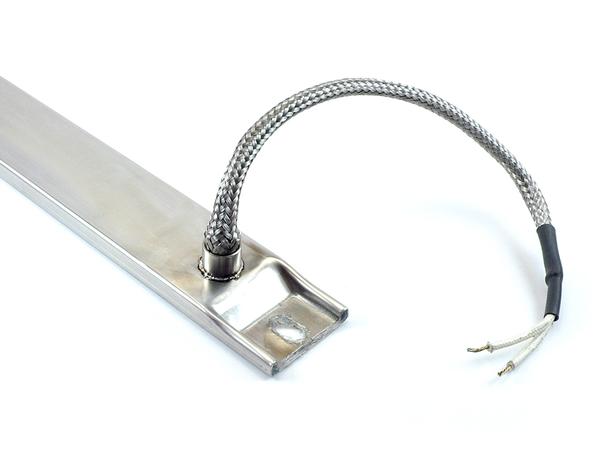

Ceramic Strip SB4 Termination With Tabs

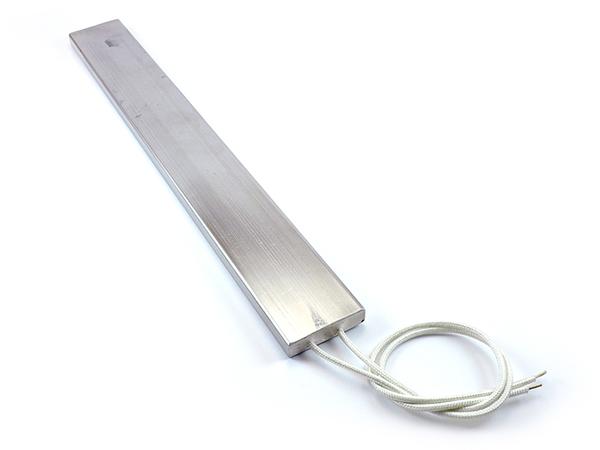

Ceramic Strip SL1 Termination

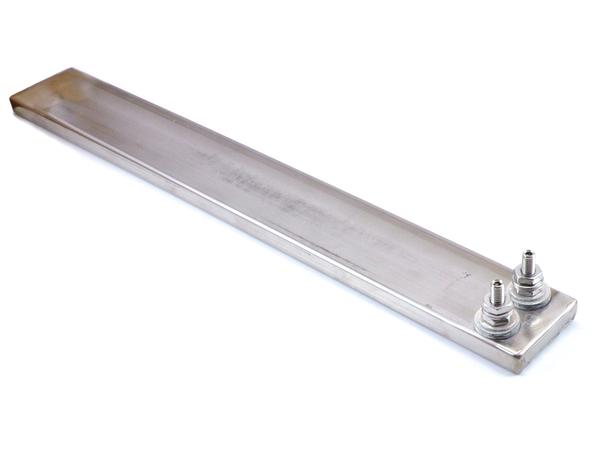

Ceramic Strip SN1 Termination Without Tabs

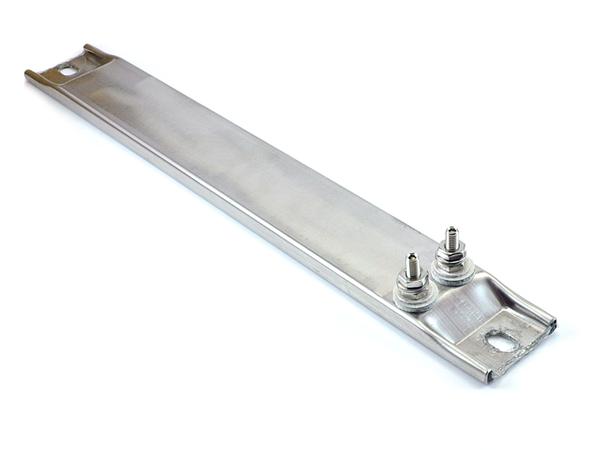

Ceramic Strip SN1 Termination With Tabs

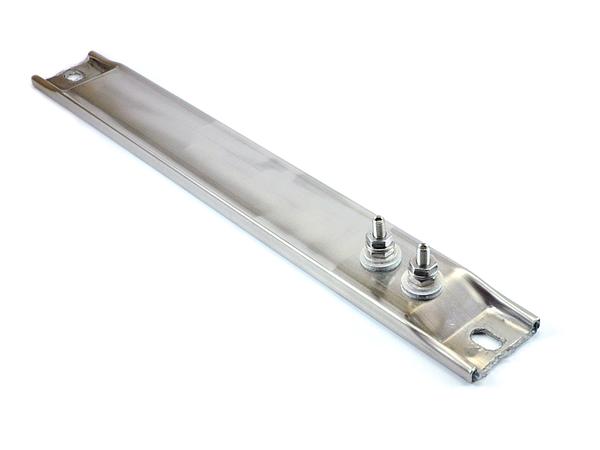

Ceramic Strip SN2 Termination With Tabs

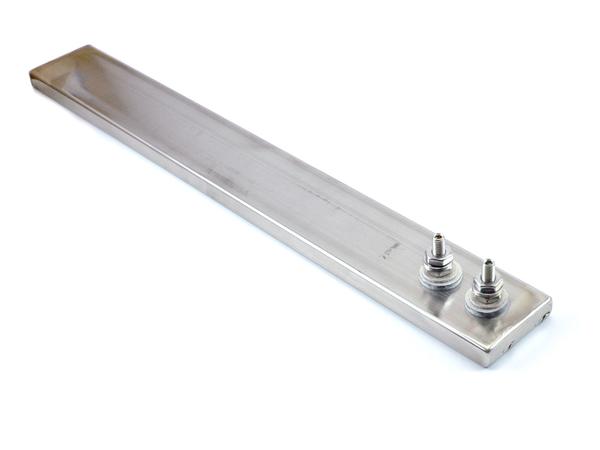

Ceramic Strip SN2 Termination Without Tabs

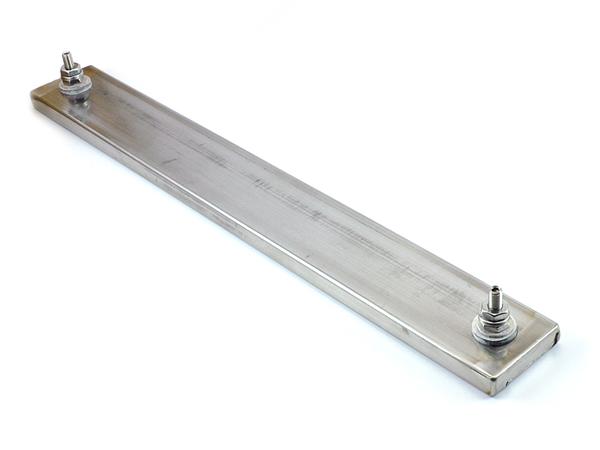

Ceramic Strip SN3 Termination without tabs

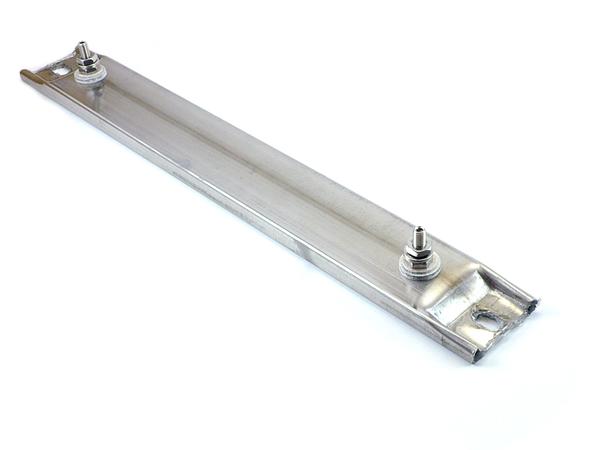

Ceramic Strip SN3 Termination with tabs

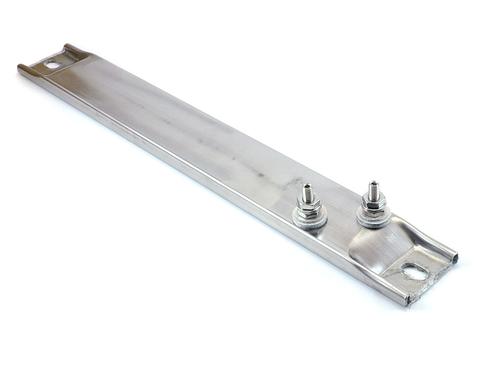

Ceramic Strip SN4 termination with tabs

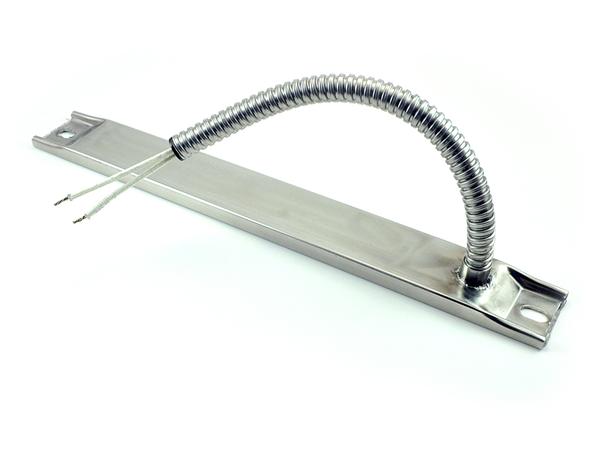

Ceramic Strip Termination SC4 With Tabs
Ceramic Strip SN4 termination with tabs
Ceramic Strip SB1 Termination
Ceramic Strip Heaters

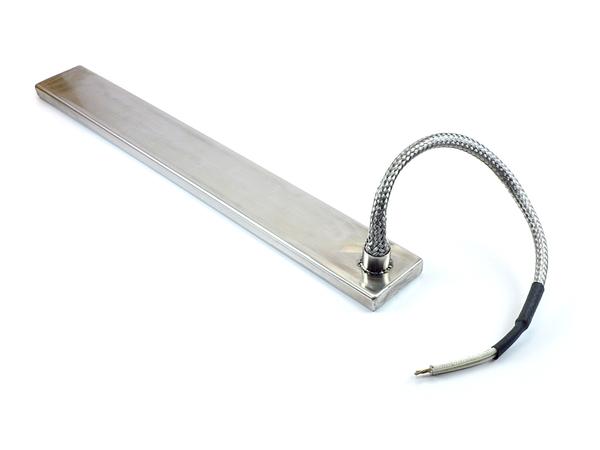

Ceramic Strip SB4 Termination Without Tabs
Ceramic Strip SB4 Termination With Tabs
Ceramic Strip SL1 Termination
Ceramic Strip SN1 Termination Without Tabs
Ceramic Strip SN1 Termination With Tabs
Ceramic Strip SN2 Termination With Tabs
Ceramic Strip SN2 Termination Without Tabs
Ceramic Strip SN3 Termination without tabs
Ceramic Strip SN3 Termination with tabs
Ceramic Strip SN4 termination with tabs
Ceramic Strip Termination SC4 With Tabs

Ceramic Strip Heaters

Backer Marathon ceramic strip heaters offer high temperature performance in a rugged, contamination resistant stainless steel sheath. They are bolt-in replacements for Chromalox, GE, Watlow, and other channel strip heaters.

They are available with either an aluminized steel sheath (for temperatures up to 800°F) or a stainless steel sheath (for temperatures up to 1200°F), with or without mounting tabs, and can be manufactured with post terminals or a variety of lead options.

Ceramic strip heaters are constructed with a using chromium resistance wire coil inside a ceramic core which is then inserted in a metal sheath and filled with magnesium oxide for maximum heat transfer.  This construction provides the long life necessary for tough applications.

We have dozens of configurations of ceramic strip heaters in stock, available for same day delivery.

Standard Specifications for Ceramic Strip Heaters

Maximum Temperature

1200°F

Max Watt Density 75 Watts per linear inch if one side of heater contacts part, 120 watts per linear inch if both sides contact part.

Maximum Wattage

120 Watts per inch of heated length, 75 if only one side is contacting the surface.

Width

1-1/2 inches

Thickness

5/16 or 3/8 inch

Length Up to 72 inches

Maximum Voltage

300V standard, 480 volts special

Maximum Amperage

20 amps (Terminals) and 12 amps (Leads)

Wattage Tolerance +5%, -10%
Resistance Tolerance +10%, -5%

Standard Mounting Slots

.50" Long x .30" Wide

Options

Options for ceramic strip heaters include:

  • Mounting Tabs
  • Potting
  • Sheath Materials

Terminations

Ceramic Strip Heater Watt Density

Formula

Watt Density for Strip Heaters = Wattage / (Heater Length - Cold) x Width



Ceramic Strip Heater Dimensional Information

Ceramic Strip Heaters with Tabs

  Heater Style Unheated Left End Unheated Right End Heated = O.A.L. minus:
Ceramic Strip SN1 with tabs dimensions SN1 2 3/8" 1 1/4"  3 5/8"
Ceramic Strip SN2 with tabs dimensions SN2 3 1/8" 1 1/4"  4 3/8"
Ceramic Strip SN3 with tabs dimensions SN3 2 3/8" 2 3/8" 4 3/4"
SN4 3 1/8" 1 1/4" 4 3/8"
  SL1 NA NA NA
  SB1 NA NA NA
Ceramic Strip SL4 with tabs dimensions SL4 2 3/8" 1 1/4" 3 5/8"
Ceramic Strip SB4 with tabs dimensions SB4 2 3/8" 1 1/4" 3 5/8"
Ceramic Strip SC4 with tabs dimensions SC4 2 3/8" 1 1/4" 3 5/8"

Ceramic Strip Heater Without Tabs

  Heater Style Unheated Left End Unheated Right End Heated = O.A.L. minus:
Ceramic Strip SN1 without tabs dimensions SN1 1 1/2"  1/4" 1 3/4"
Ceramic Strip SN2 without tabs dimensions SN2 2 1/4" 1/4" 2 1/2"
Ceramic Strip SN3 without tabs dimensions SN3 1 1/2" 1 1/2" 3"
Ceramic Strip SN4 without tabs dimensions SN4 2 1/4" 1/4" 2 1/2"
  SL1 NA NA NA
  SB1 NA NA NA
Ceramic Strip SL4 without tabs dimensions SL4 3/4" 1/4" 1"
Ceramic Strip SB4 without tabs dimensions SB4 3/4" 1/4" 1"
ceramic strip SC4 with dimensions SC4 3/4" 1/4" 1"
