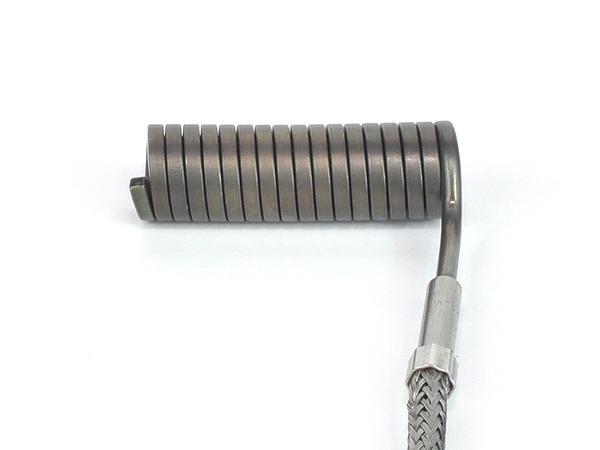

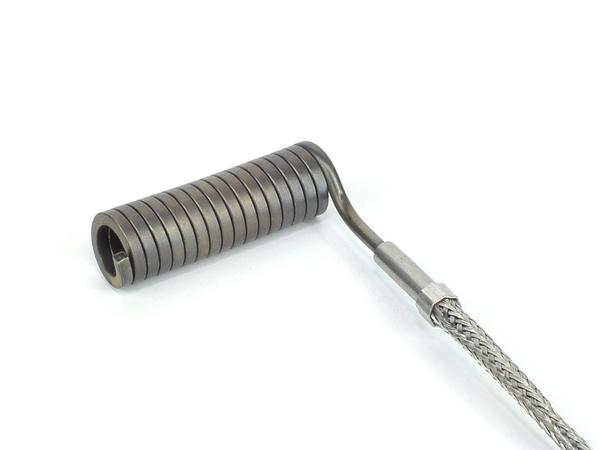

Coil Heater With CL1 Termination

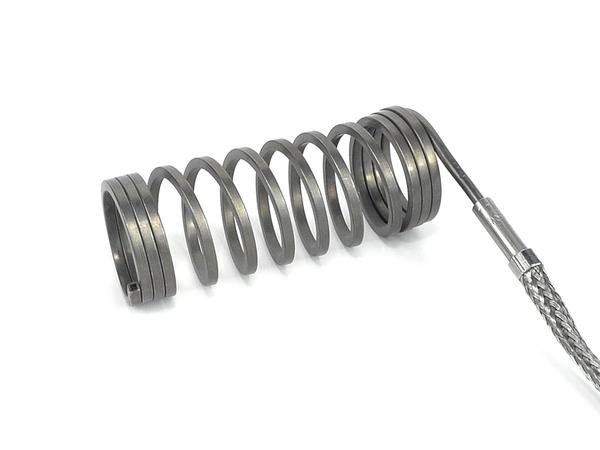

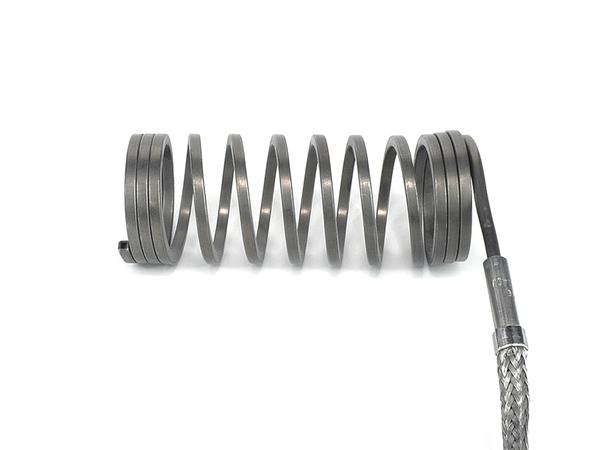

Coil Heater With CL2 Termination
Coil Heater With CL2 Termination

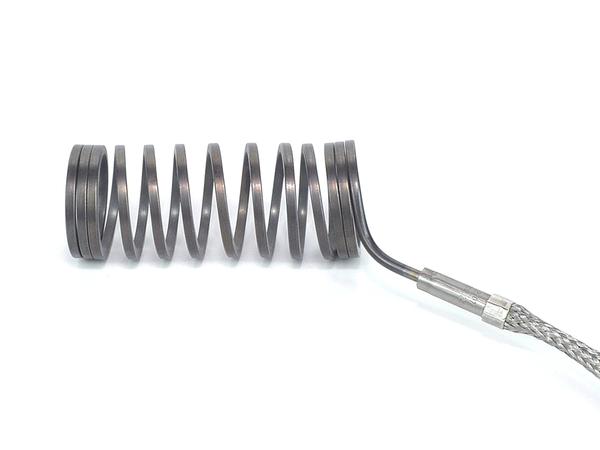

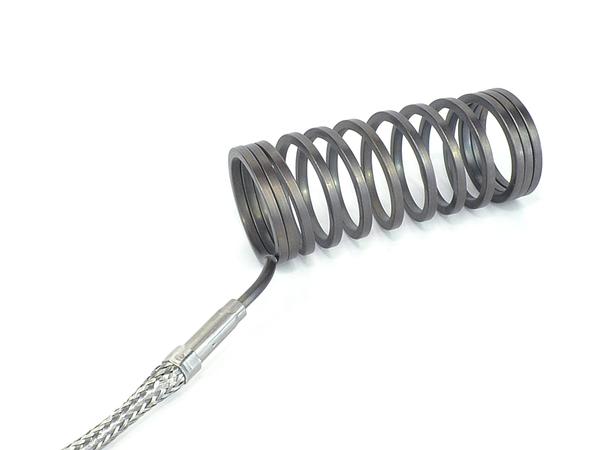

Coil Heater With CL3 Termination
Coil Heater With CL3 Termination

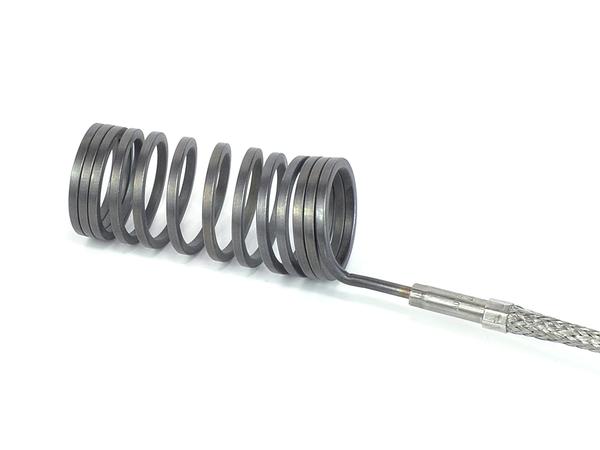

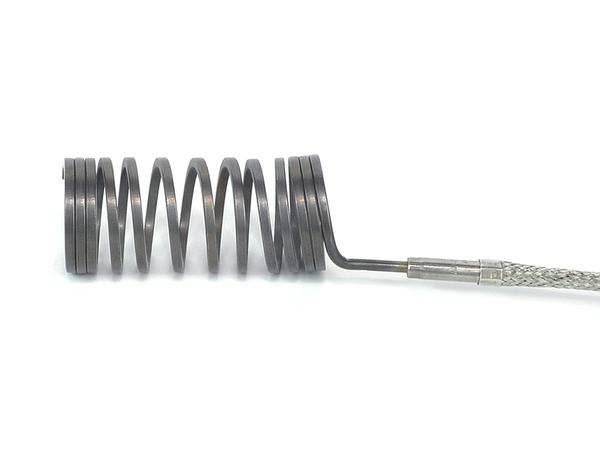

Coil Heater with CL4 Termination
Coil Heater With CL4 Termination
Group of Coil Heaters
Coil Heater With CL1 Termination
Coil Heater With CL2 Termination
Coil Heater With CL2 Termination
Coil Heater With CL3 Termination
Coil Heater With CL3 Termination
Coil Heater with CL4 Termination
Coil Heater With CL4 Termination

Viper Coil Heaters

When highly focused heat is required, and a very low profile is imperative, coil heaters are the best cost-effective option. Coil heaters may be used to concentrate the heat on specific segments, or the coil may be spread to equalize the temperature across the object to be heated.

Backer Marathon stocks a wide variety of coil heaters, OEM replacement heaters, and will provide custom configurations upon request.



Standard Viper Coil Heater Specifications

Backer Marathon Viper Coil Heaters feature:

  • Flexible Teflon lead wire
  • Stainless Steel Sheath
  • Nickel Chromium resistance wire with highly compacted MgO fill
  • Available with or without internal thermocouples (Type J and Type K available for precise temperature control)
  • 1/8" x 1/8" element cross section
  • Seal welded end
  • Ground Wire
  • 36" Stainless steel braid over leads
  • .130 square cross section is standard

Standard Lead Orientations

These are our standard viper coil heater lead configurations. Other configurations are available upon request.

Image Not Available

Standard Type CL1

Image Not Available

Type CL2

Image Not Available

Type CL3

Image Not Available

Type CL4

Standard Viper Coil Sizes

The table shows the standard lengths and wattages that are available off the shelf for coiling and immediate delivery. Heaters can be coiled to lengths greater than shown with or without wattage profiling. Coil lengths can be much longer than those shown depending on coil spacing. Heaters can normally be coiled and shipped in one working day.

  • Coil lengths based on a closed coil. Coils can be stretched for distributed wattage and/or much longer coil lengths.
  • Sizes are based on a 1.18" extension length.
  • All heaters are 240V.
  • All heaters have 36" leads with stainless steel overbraid and a ground wire.
  • Heaters are available with and without thermocouple.
  • All heaters are .13" x .13" square cross section.

Straight Length vs. Coil Length

      Coil Diameter (ID)
Straight Length Wattages Available 1/2 5/8 3/4 7/8 1 1 1/4 1 1/2
14 200 - 1.02 0.88 0.75 0.75 0.61 0.47 0.47
16 250 175 1.16 1.02 0.88 0.75 0.75 0.61 0.47
18 300 225 1.31 1.16 1.02 0.88 0.75 0.61 0.61
20 350 250 1.45 1.18 1.04 0.90 0.90 0.77 0.63
24 400 300 1.74 1.47 1.33 1.20 1.06 0.92 0.79
28 450 350 2.04 1.76 1.49 1.35 1.22 1.08 0.94
32 500 400 2.31 1.90 1.76 1.49 1.35 1.22 0.94
36 600 450 2.62 2.21 1.93 1.66 1.52 1.25 1.11
40 700 500 2.90 2.49 2.08 1.94 1.67 1.39 1.26
48 800 550 3.47 2.92 2.51 2.24 2.10 1.69 1.55
52 900 650 3.76 3.21 2.80 2.53 2.26 1.84 1.57
56 1000 - 4.04 3.49 2.94 2.67 2.39 1.96 1.71
64 1100 - 4.58 3.90 3.25 2.94 2.67 2.26 1.98
72 1250 - 5.13 4.31 3.76 3.35 2.94 2.53 2.12
80 1400 1000* 5.68 4.86 4.17 3.63 3.35 2.80 2.39
90 1100* - 7.52 6.42 5.28 4.53 4.18 3.50 2.98




*Only available with TC



OEM Replacement Heaters

OEM Part No. Marathon Part No. Coil ID Coil Length Lead Length TC Volts Watts
SCH0001 CL125-027A 1.25" 2.70 36 NO 240 800
SCH0002 CL125-017A 1.25" 1.70 36 NO 240 600
SCH0003 CL62-009A 0.625" 0.975 36 NO 240 225
SCH0060 CL75-014A 0.750" 1.427 36 NO 240 250
SCH0061 CL75-019A 0.750" 1.937 36 NO 240 300
SCH0062 CL75-024A 0.750" 2.437 36 NO 240 350
SCH0063 CL75-029A 0.750" 2.937 36 NO 240 400
SCH0064 CL75-034A 0.750" 3.437 36 NO 240 425
SCH0065 CL75-044A 0.750" 4.437 36 NO 240 500
SCH0066 CL75-054A 0.750" 5.437 36 NO 240 500
SCH0081 CL62-020A 0.625" 2 36 YES 240 300
SCH0082 CL62-025A 0.625" 2.5 36 YES 240 350
SCH0083 CL62-030A 0.625" 3 36 YES 240 400
SCH0084 CL62-035A 0.625" 3.5 36 YES 240 425
SCH0085 CL62-040A 0.625" 4 36 YES 240 500
SCH0086 CL62-050A 0.625" 5 36 YES 240 500
SCH0087 CL62-060A 0.625" 6 36 YES 240 550
SCH0088 CL87-021A 0.875" 2.125 36 YES 240 400
SCH0089 CL87-026A 0.875" 2.625 36 YES 240 450
SCH0090 CL87-031A 0.875" 3.125 36 YES 240 550
SCH0091 CL87-036A 0.875" 3.625 36 YES 240 700
SCH0092 CL87-041A 0.875" 4.125 36 YES 240 800
SCH0093 CL87-051A 0.875" 5.125 36 YES 240 900
SCH0094 CL87-061A 0.875" 6.125 36 YES 240 1000
SCH0095 CL87-071A 0.875" 7.125 36 YES 240 1100
SCH0096 CL150-040B 1.500" 4.00 36 YES 240 1000
SCH0097 CL150-050A 1.500" 5.00 36 YES 240 1000
SCH0098 CL150-060A 1.500" 6.00 36 YES 240 1100
SCH0099 CL150-070A 1.500" 7.00 36 YES 240 1100
SCH0100 CL150-080A 1.500" 8.00 36 YES 240 1200
SCH0101 CL150-090A 1.500" 9.00 36 YES 240 1200
SCH0102 CL150-100A 1.500" 10.00 36 YES 240 1200
SCH3142 CL75-014A 0.750" 1.75 36 YES 240 315
SCH3242 CL75-024B 0.750" 2.44 36 YES 240 315
SSTC-31-90 CL50-045F 0.500" 4.635" 36 YES 240 300
SSTC-32-90 CL50-045D 0.500" 4.625" 36 YES 240 300
SSTC-42-90 CL50-025B 0.500" 2.50" 36 YES 240 450
SSTC-31 CL50-045E 0.500" 4.625" 36 yes 240 300
SSTC-32 CL50-045C 0.500" 4.625" 36 YES 240 300
SSTC-42 CL50-025A 0.500" 2.50" 36 YES 240 450
SCH1060 CL075-015C 0.750" 1.594" 36 YES 240 250
SCH1061 CL075-020G 0.750" 2.094" 36 YES 240 300
SCH2061 CL075-020H 0.750" 2.094" 36 YES 240 300
SCH1062 CL075-025A 0.750" 2.594" 36 YES 240 350
SCH2062 CL075-025B 0.750" 2.594" 36 YES 240 350
SCH1063 CL075-030D 0.750" 3.094" 36 YES 240 400
SCH2063 CL075-030E 0.750" 2.094" 36 YES 240 400
SCH1064 CL075-035B 0.750" 3.594" 36 YES 240 425
SCH2064 CL075-035C 0.750" 3.594" 36 YES 240 425
SCH1065 CL075-045A 0.750" 4.594" 36 YES 240 500
SCH2065 CL075-045B 0.750" 4.594" 36 YES 240 500
SCH1066 CL075-055A 0.750" 5.598" 36 YES 240 500
SCH2066 CL075-055B 0.750" 5.594" 36 YES 240 500
SSTC-62-90 CL50-014A 0.500" 1.45" 36 YES 240 250
SSTC-72-90 CL50-020C 0.500" 2.00" 36 YES 240 250
SCH0103 CL075-010C 0.750" 1.0" 36 NO 240 125
SCH0104 CL075-010D 0.750" 1.0" 72 NO 240 125
SCH0105 CL075-010E 0.750" 1.0" 36 NO 240 250
SCH0106 CL075-010F 0.750" 1.0" 72 NO 240 250
SCH0107 CL075-010G 0.750" 1.0" 36 YES 240 125
SCH0108 CL075-010H 0.750" 1.0" 36 NO 240 250
SCH0109 CL087-010A 0.875" 1.0" 36 NO 240 125
SCH110 CL087-010B 0.875" 1.0" 36 NO 240 250

Stock Parts

1 - 20 of 64 Filter Results

Part No. Diameter Watts Volts Length Available Qty Price
CL075-010C 0.750 inches 125 watts 240 volts 1.00 inches 0 Sign In for Pricing
CL075-010D 0.750 inches 125 watts 240 volts 1.00 inches 0 Sign In for Pricing
CL075-010E 0.750 inches 250 watts 240 volts 1.00 inches 0 Sign In for Pricing
CL075-010F 0.750 inches 250 watts 240 volts 1.00 inches 0 Sign In for Pricing
CL075-010G 0.750 inches 125 watts 240 volts 1.00 inches 0 Sign In for Pricing
CL075-010H 0.750 inches 250 watts 240 volts 1.00 inches 0 Sign In for Pricing
CL075-015C 0.750 inches 250 watts 240 volts 1.59 inches 0 Sign In for Pricing
CL075-020G 0.750 inches 300 watts 240 volts 2.09 inches 0 Sign In for Pricing
CL075-020H 0.750 inches 300 watts 240 volts 2.09 inches 0 Sign In for Pricing
CL075-024B 0.750 inches 315 watts 240 volts 2.44 inches 0 Sign In for Pricing
CL075-025A 0.750 inches 350 watts 240 volts 2.59 inches 0 Sign In for Pricing
CL075-025B 0.750 inches 350 watts 240 volts 2.59 inches 0 Sign In for Pricing
CL075-030D 0.750 inches 400 watts 240 volts 3.09 inches 0 Sign In for Pricing
CL075-030E 0.750 inches 400 watts 240 volts 3.09 inches 0 Sign In for Pricing
CL075-035B 0.750 inches 425 watts 240 volts 3.59 inches 0 Sign In for Pricing
CL075-035C 0.750 inches 425 watts 240 volts 3.59 inches 0 Sign In for Pricing
CL075-045A 0.750 inches 500 watts 240 volts 4.59 inches 0 Sign In for Pricing
CL075-045B 0.750 inches 500 watts 240 volts 4.59 inches 0 Sign In for Pricing
CL075-055A 0.750 inches 500 watts 240 volts 4.59 inches 0 Sign In for Pricing
CL075-055B 0.750 inches 500 watts 240 volts 4.59 inches 0 Sign In for Pricing
