Air Heaters

Backer Marathon air heaters feature an open coil of high temperature resistance wire electrically isolated in a stainless steel sheath. Because the air being heated passes directly over the resistance wire, maximum heat transfer efficiency is achieved. Backer Marathon brand air heaters are used for heat staking, plastic welding, laminating, drying, heat sealing, and any other operation where air needs to be heated up 1000°F.

1/2” and 3/4” diameters are standard with other sizes available. Several 1/2” diameter air heaters are in stock for same day delivery. Options such as male and female fittings for inlets and outlets, thermocouples to monitor outlet temperature, and pin connectors are available.

Construction Information

  • 1/2”, 5/8” or 3/4 diameter 304 Stainless Steel Sheath.
  • Nickel-Chromium Coils.
  • High temperature leads or 3 pin connector.
  • Epoxy Seal
  • Copper Tee
  • 120 Volt and 240 Volt

Standard Air Heater Specifications

Backer Marathon Air Heaters must be used with clean air only and are able to handle air temperatures as high as 1000°F. Please see the table below for more information on Air Heater Specifications.

  1/2” OD heater 3/4”OD heater
Lead Wire Size 22 ga. 18 ga.
Maximum Amperage 10 amps 15 amps
Female NPT Size 1/8” 3/8”
Male NPT Size 3/8” 3/4”
Maximum CFM 10 SCFM 22 CFM

Applications

Backer Marathon manufactures and stocks several variations of 1/2” diameter air heaters for:

  • Heat Staking
  • Shrink Fitting
  • Plastic Welding
  • Laminating
  • Sealing
  • Drying

Options

  • Male or Female pipe thread on inlet or outlet
  • Brass or Stainless Steel fittings
  • Flanges
  • SJO Cord
  • Elbow on Outlet
  • Stainless Steel Tee
  • Various volts and Watts
  • Custom configurations and sizes
  • 1/2”, 5/8” and 3/4” diameters available

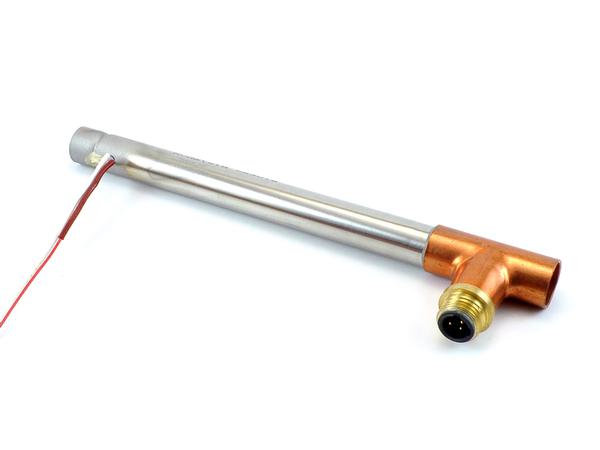

  • Optional Thermocouple at outlet for temperature control

Termination Options

Leads

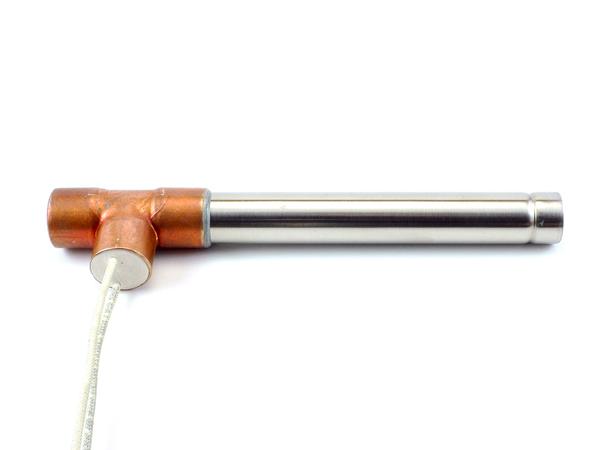

air heater with leads Air Heater with Leads Dimensions Air Heater with Leads

Plugs

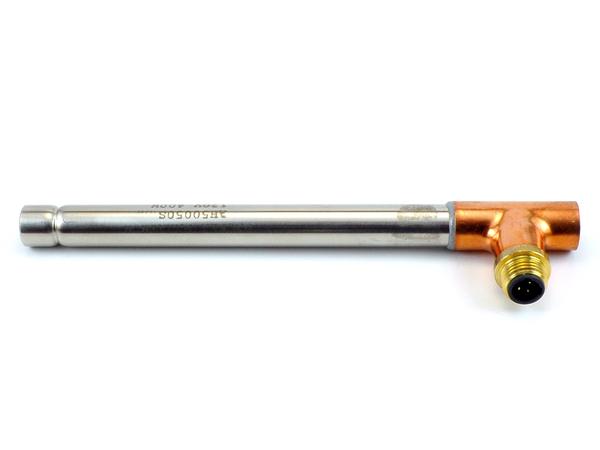

air heater with 3 pin plug Air Heater with 3 pin plug dimensions Air Heater with 3 Pin Plug

Fitting Options

air heater with leads female npt Air Heater with leads female NPT close up

Air Heater with Female 1/4" FTP on Outlet

  • Can be used on either inlet or outlet

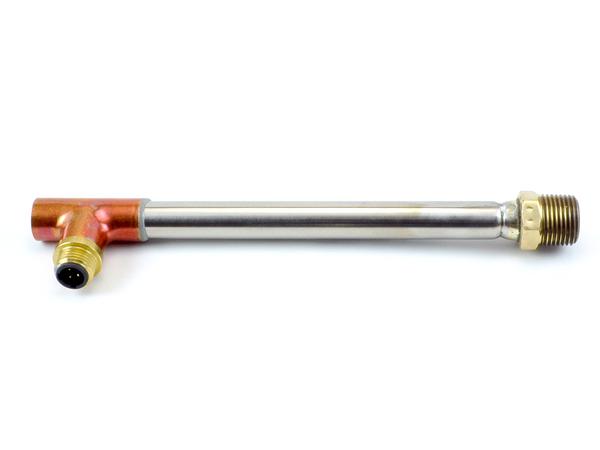

air heater with male NPT on outlet Air Heater with male NPT dimensions

Air Heater with Male 3/8" NPT on Outlet

  • Can be used on either inlet or outlet

Stock Parts

1 - 20 of 35 Filter Results

Part No. Diameter Watts Volts Length Available Qty Price
AH50050R 0.500 inches 400 watts 120 volts 5.00 inches 40 Sign In for Pricing
AH50050R-2 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050R-3 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050R-7 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050R-8 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050S 0.500 inches 400 watts 120 volts 5.00 inches 47 Sign In for Pricing
AH50050S-1 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050S-3 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050S-4 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050S-6 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050S-7 0.500 inches 400 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050T 0.500 inches 400 watts 240 volts 5.00 inches 33 Sign In for Pricing
AH50050T-1 0.500 inches 400 watts 240 volts 5.00 inches n/a Sign In for Pricing
AH50050T-3 0.500 inches 400 watts 240 volts 5.00 inches n/a Sign In for Pricing
AH50050T-5 0.500 inches 400 watts 240 volts 5.00 inches n/a Sign In for Pricing
AH50050T-8 0.500 inches 400 watts 240 volts 5.00 inches n/a Sign In for Pricing
AH50050U 0.500 inches 400 watts 240 volts 5.00 inches n/a Sign In for Pricing
AH50050U-2 0.500 inches 400 watts 240 volts 5.00 inches 8 Sign In for Pricing
AH50050V 0.500 inches 600 watts 120 volts 5.00 inches n/a Sign In for Pricing
AH50050V-1 0.500 inches 600 watts 120 volts 5.00 inches 8 Sign In for Pricing
